PACKAGED SYSTEMS
MODEL 50386P — Packaged Repeater
General Description
The HydroLynx Model 50386P Packaged Repeater is used to relay data from remote sites to a central site where line-of-site radio paths do not exist. The complete package includes a weather proof housing for the Model 50386RP Data Repeater, a high gain omni antenna with mast, and a solar panel. The Model 50386P is designed for fast efficient installation, with minimum environmental impact, at repeater sites where no other structures or towers are available.
A 3.0 Amp solar panel is supplied as standard. This size requires a minimum of only one sun hour per day to keep the repeater battery charged. The battery is sufficient to operate the repeater for 20 days during periods of no sun. Additional batteries can be supplied for longer periods of eligible sun.
The repeater battery voltage can be transmitted to the base station on a timed interval or when a change threshold is met. Sensor input packages add sensor connectors to the 50386 canister for on site data collection and transmission back to the base station.
Specifications
| Height | 16 ft. |
| Diameter | 12 in. |
| Weight | 80 lbs. |
| Shipping Weight | 90 lbs. |

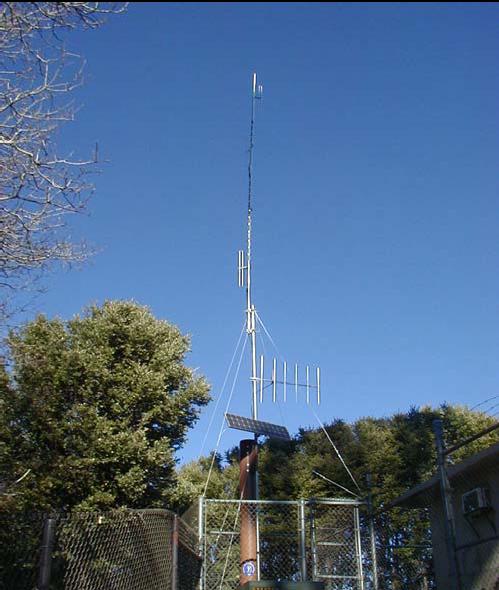

Packaged Repeater with two antennas, San Bernardino County, CA
Ordering Information
| 50386P | Packaged Repeater — includes: |
| 50386RP-SA | Standpipe Assembly: |
| 50386RP-SO | Standpipe |
| 5090SC | Spun Cap |
| 50386P-AM | Antenna Mast Assembly |
| DB224 or DB408 | Antenna (Specify frequency) |
| 50386C | Antenna Cable |
| 50386LR | Lifting Rope |
| 50386RP | Repeater |
| RTR | Radio Link (Specify radio and frequency) |
| 5031-18 | Gel Cell Battery, 18 AH, 12 Vdc |
| 5033-3.0B | Solar Panel, Regulator, Mounting Bracket |
| 50386P-2 | Same as 50386P with 2 RTRs and 2 Antenna Connectors |
| 50386P-54 | Same as 50386P with 5054TS Rain Gauge Top Section |
| 50386P-90 | Same as 50386P with 5050LL-PTD Pressure Transducer |
| 50386P-81 | Same as 50386P with all weather station sensors |
| Specify transmit and receive radio frequencies for all models. |
Options
| 50386P-D | Access Door for Standpipe |
| RPA-T | Power Amplifier, 20 watts |
| 5050LA | Lightning Protection |
| 5054SG | Standpipe Ground Kit |
| 5073TBX | 50386 Toolbox Software |
| 50386-OP2 | 10-Pin MS Female Digital Status Connector |
| 50386-OP4 | 6 Serial Port Expansion |
| 50386-OP5 | Internal 2400 Baud Modem |
| 50386-OP6 | Internal Power Supply |
| 50386-OP7 | GOES Radio |
| 50386-OP8 | ScadaLynx Radio |
| 50386-OP9 | Microwave Interface |
| 50386-OP10 | GOES Antenna |
| 50386-OP11 | Industrial Dial-up Modem |
Radio Options
| Default | Tx: Maxon 5W with Enclosure; Rx: Ritron 5W without Enclosure |
| Supported | Rx: Ritron 30W with Enclosure |
